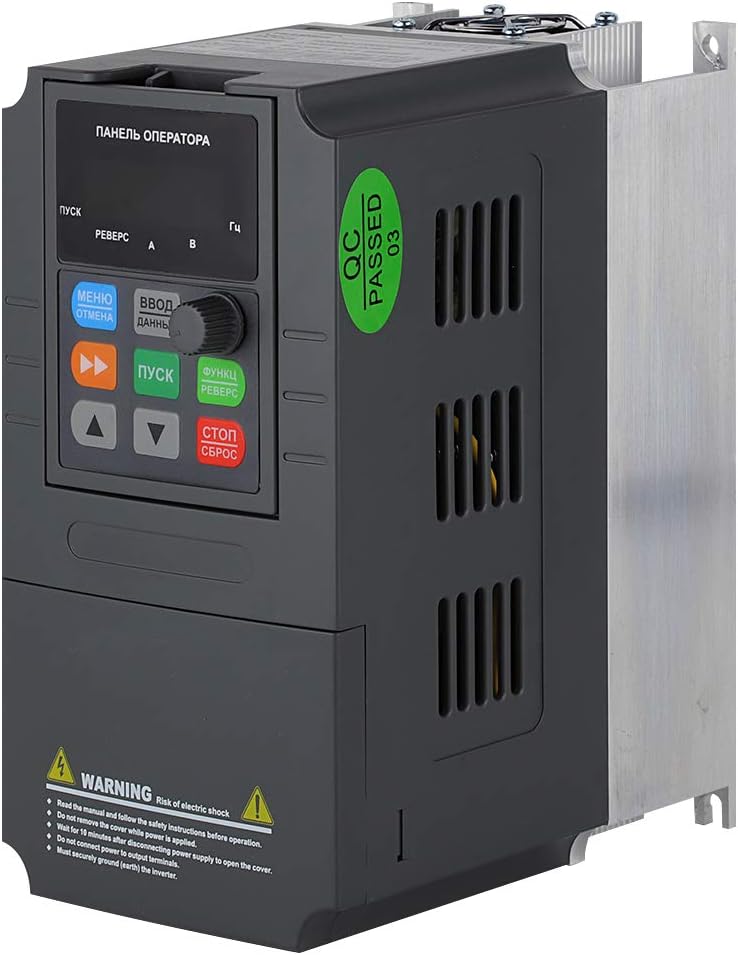

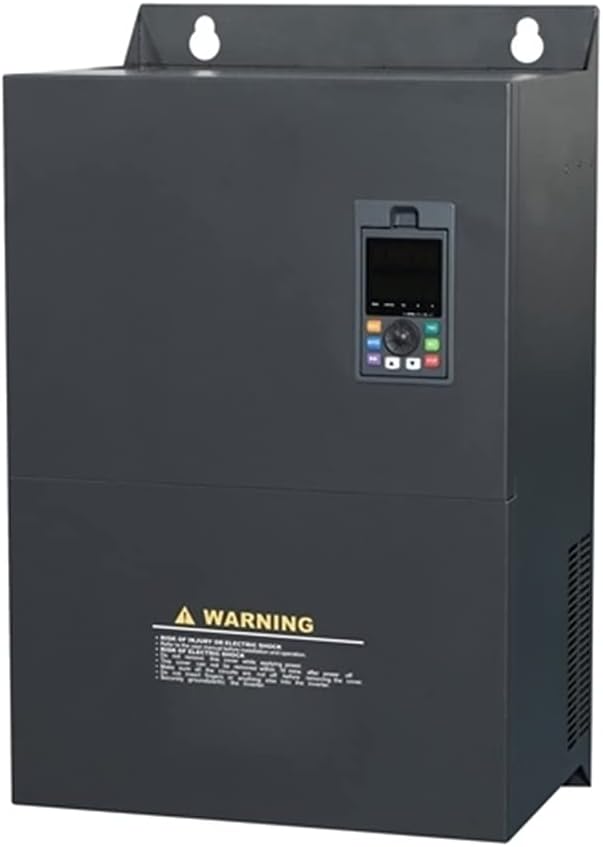

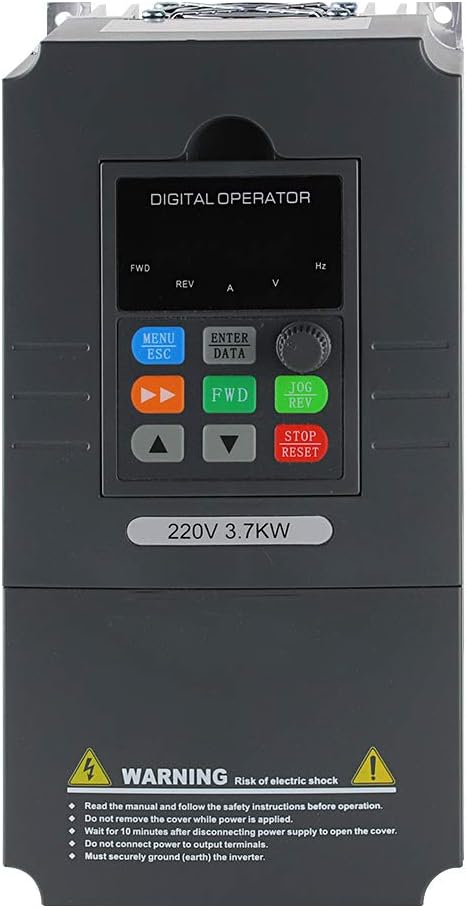

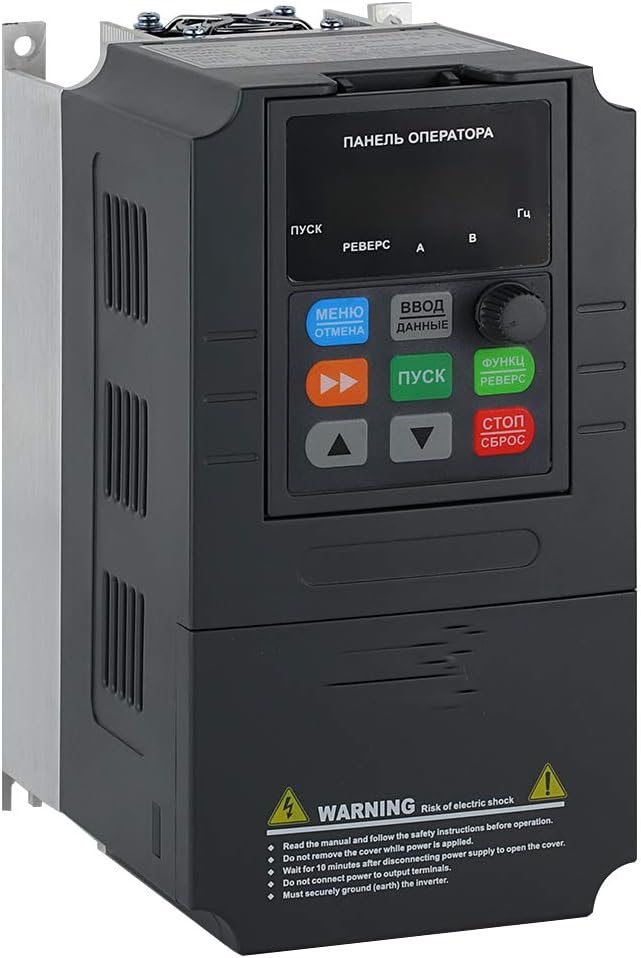

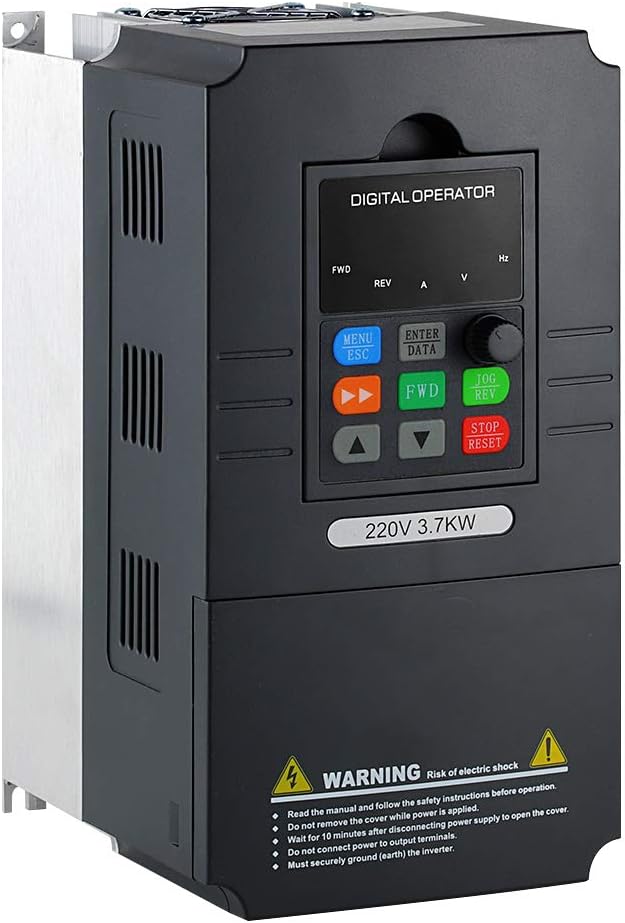

5 hp 3.7 kW 17A VFD Single Phase 220V to 3 Phase Variable Frequency Drive Motor Control Inverter Y53460
Sale price
$28.95
Regular price $103.94
Skip to product information
5 hp VFD, 3.7 kW, single phase 220V to three phase variable frequency drive, 17 amps. Using it as a phase converter to convert 1-phase 220v (230v, 240v) home power supply to drive 3-phase motors【VARIABLE FREQUENCY DRIVE】Input voltage 1 phase 220~240V AC ±15%; Input frequency 50Hz/ 60Hz; Output voltage 3 phase AC 0~input voltage; Output frequency 0.00~400.00Hz【APPLICATION】Can be widely applied to drive the AC motor, such as fans, pumps, power tools, etc【TIPS】 A single phase VFD can convert 1-phase 220v-240v to 3-phase to power the three phase motor, also can reduce the inrush current of the motor during starting up【CUSTOMER FIRST】If you have no experience in driving a VFD, be sure to refer to the instructions before operating a VFD.If you are not sure about the size or have any issue about the product or service, please don't hesitate to email us. We will answer you within 12h
5 hp 3.7 kW 17A VFD Single Phase 220V to 3 Phase Variable Frequency Drive Motor Control Inverter Y53460
Sale price
$28.95
Regular price $103.94
Shipping calculated at checkout.
| 1/2 hp vfd | 1 hp vfd | 2 hp vfd | 3 hp vfd | 5 hp vfd | 7.5 hp | |
|---|---|---|---|---|---|---|
| Capacity | 1/2 hp (0.4 kW) | 1 hp (0.75 kW) | 2 hp (1.5 kW) | 3 hp (2.2 kW) | 5 hp (3.7 kW) | 7.5 hp (5.5 kW) |
| Rated current | 3 A | 4.7 A | 7.5 A | 10 A | 17 A | 24 A |
| Dimension | 5.6″*3.4″*4.4″ | 5.6″*3.4″*4.4″ | 5.6″*3.4″*4.4″ | 7.5″*4″*6″ | 9″*4.7″*6.4″ | 13″*7.9″*7.9″ |
| Shipping weight | 2.2 lbs | 2.2 lbs | 2.2 lbs | 3.8 lbs | 6 lbs | 16.5 lbs |
